Disc 6 Pro UR

Category: Access Points

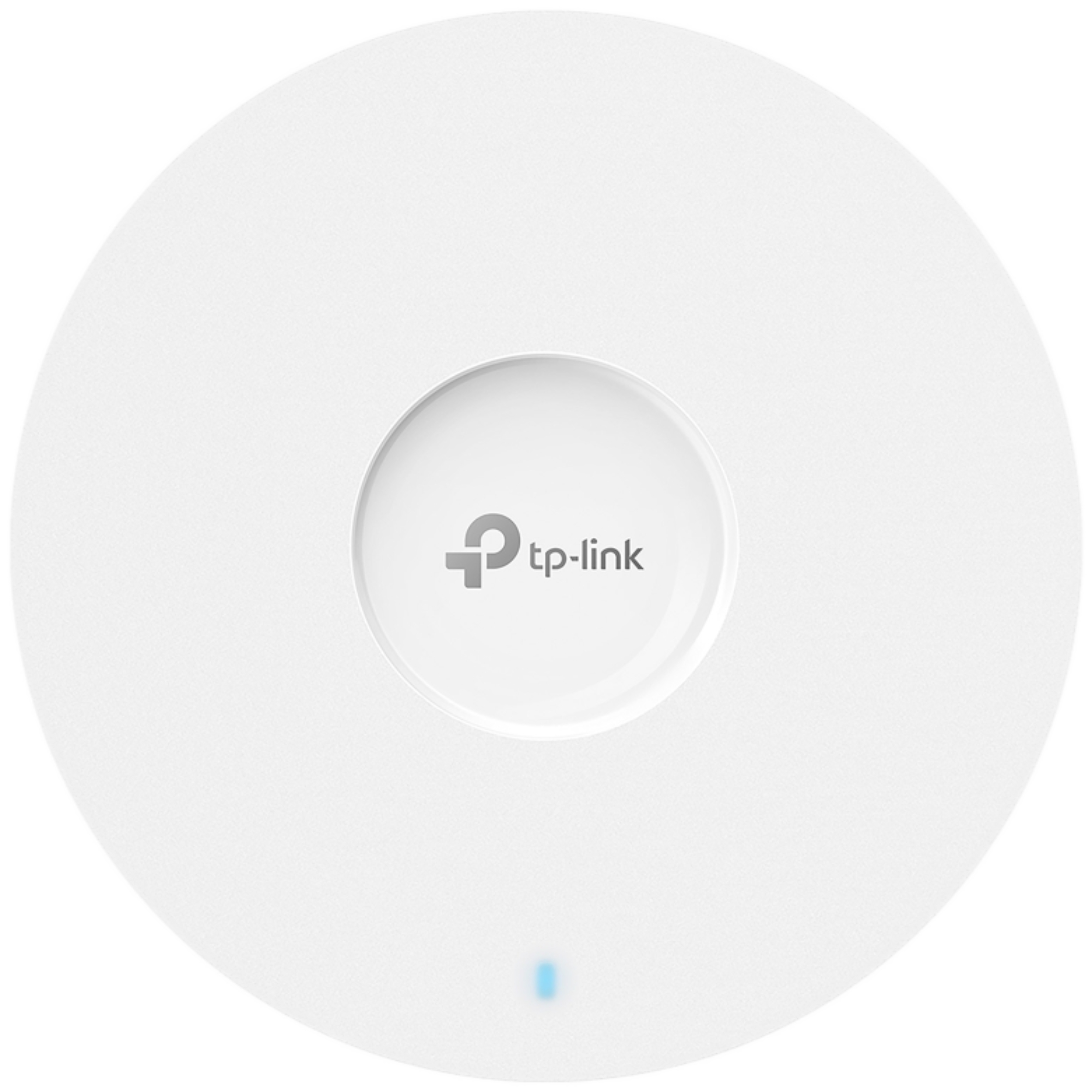

The Omada EAP683 UR is an enterprise AP with ultra-fast WiFi 6 speeds, for long range and high density.

R3,149

Contact us

* Prices are indicative only and subject to change. Cost is inclusive of VAT.

Specifications

The Omada EAP683 UR AX6000 Ceiling Mount WiFi 6 Access Point, with speeds up to 5952 Mbp. Equipped with 4×4 MIMO dual-band internal antennas and high transmission power. It supports WiFi 6 technologies, such as HE160, 1024-QAM, etc. Supports both 802.3at PoE+ and DC power.

Details

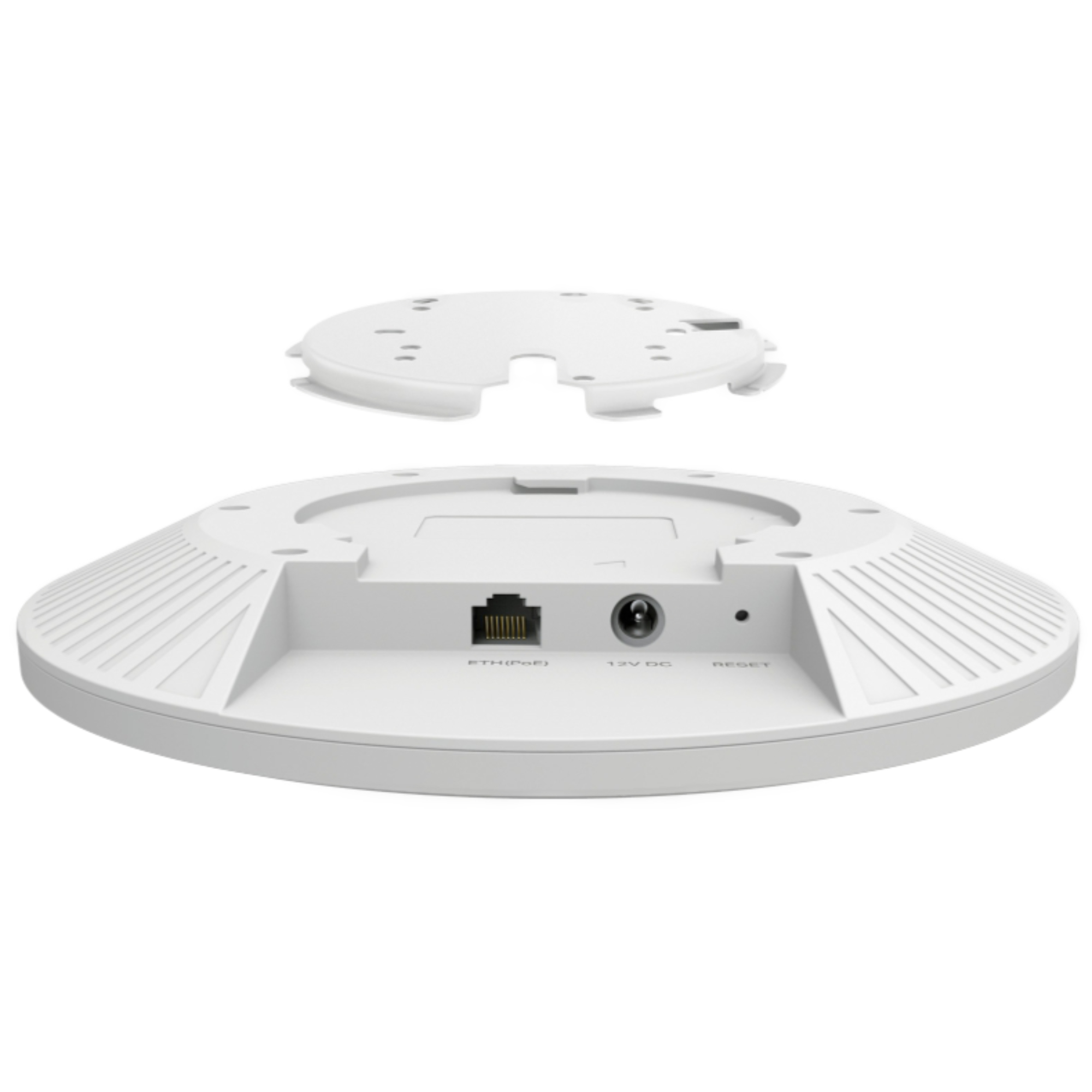

  • Networking Interface: 1 × 2.5 Gigabit POE+ port
  • Buttons: Reset
  • Antenna: Internal Omni | 2.4GHz: 4 x 4dBi | 5GHz: 4 x 5dBi
  • WiFi Standards: 802.11ax/ac/n/g/b/a
  • Power Supply: 802.3at PoE; 12 V / 2 A DC
  • Mounting: Ceiling/Wall Mounting
  • Operating Temperature: 0 to 40° C
  • Operating Humidity: 10 to 90% Noncondensing
  • Dimensions ( W x D x H ): 220 × 220 × 32.5 mm
