Specifications

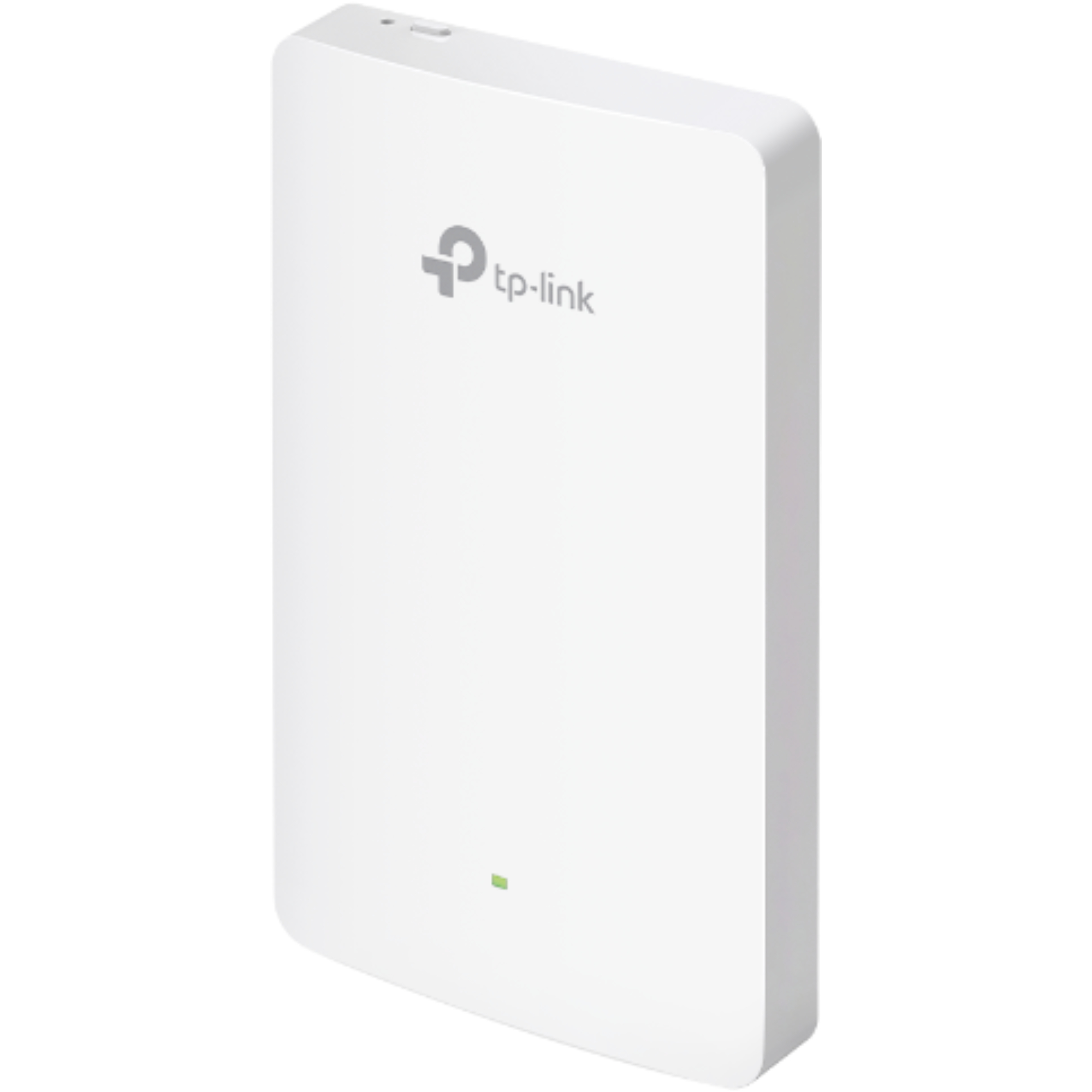

The Omada EAP615 AX1800 Wall Plate WiFi 6 Access Point is easy to deploy on a wall. It supports passive PoE for convenient installation up to 100meters. Enterprise class WiFi security help to decrease network security threats.

Details

Elegant Appearance: 20 mm ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments

Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment

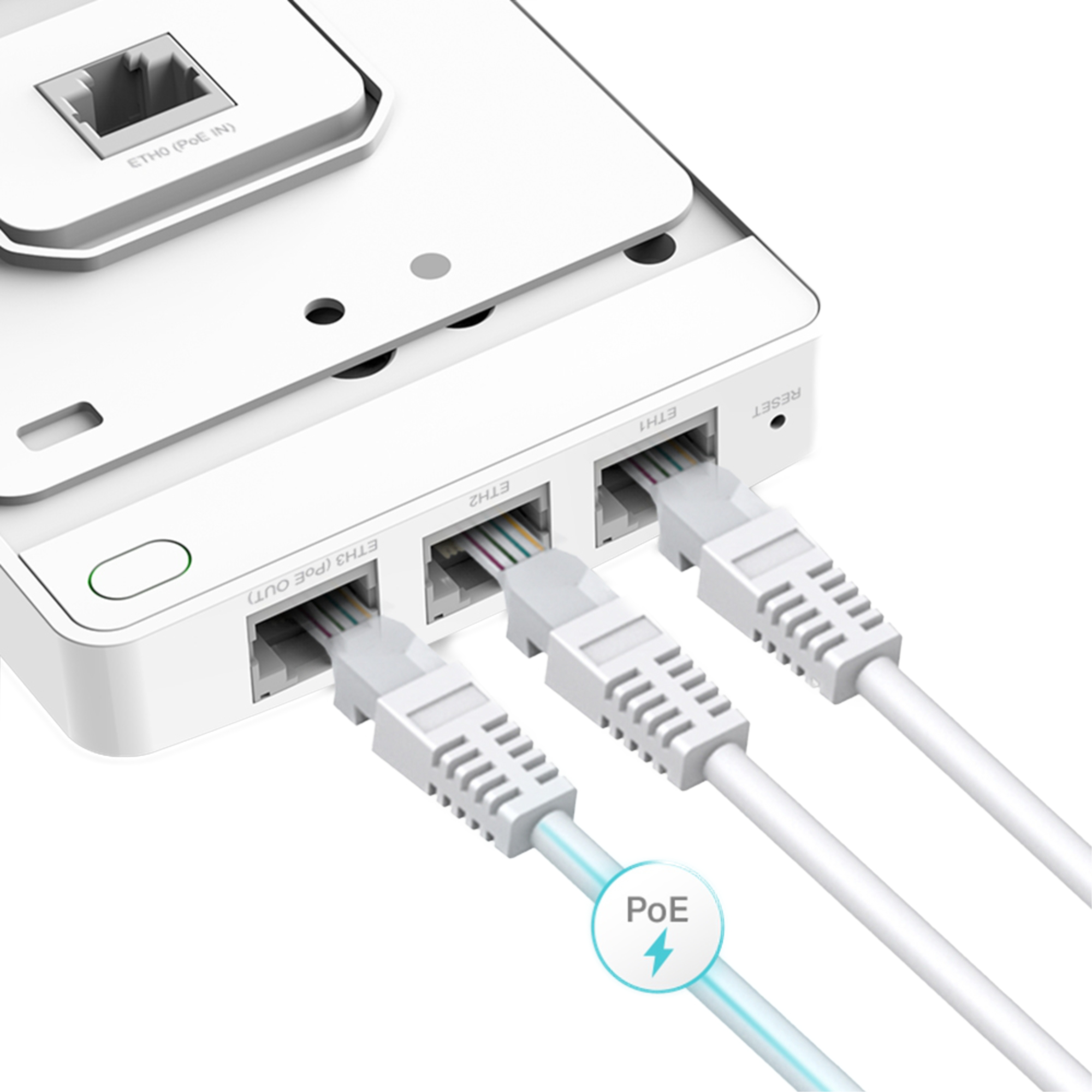

• Networking Interface: Uplink: 10/100/1000 Mbps Ethernet Port*1 | Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
• Buttons: Reset
• Antenna: 2 Dual-Band Antennas | 2.4GHz: 2*3dBi | 5GHz: 2*4dBi
• WiFi Standards: 802.11ax/ac/n/g/b/a
• Signal rate: 5GHz Up to 1201 Mbps | 2.4GHz Up to 574 Mbps
• Power Supply: 802.3af/802.3at PoE
• Maximum Power Consumption: 10 watts
• Maximum TX Power 2.4 GHz: 20 dBm
• Maximum TX Power 5 GHz: 23 dBm
• BSSID: 16 SSIDs, 8 for each band)
• Power Save: Supported
• Wireless Security: Captive Portal Authentication | Access Control | Wireless Mac Address Filtering | Wireless Isolation Between Clients | VLAN | Rogue AP Detection | 802.1X Support | 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
• Mounting: Wall Plate Mounting
• Operating Temperature: 0 to 40° C
• Operating Humidity: 10 to 90% Noncondensing
• Dimensions ( W x D x H ): 143 × 86 × 20mm

Documentation & downloads

• Datasheet
