Specifications

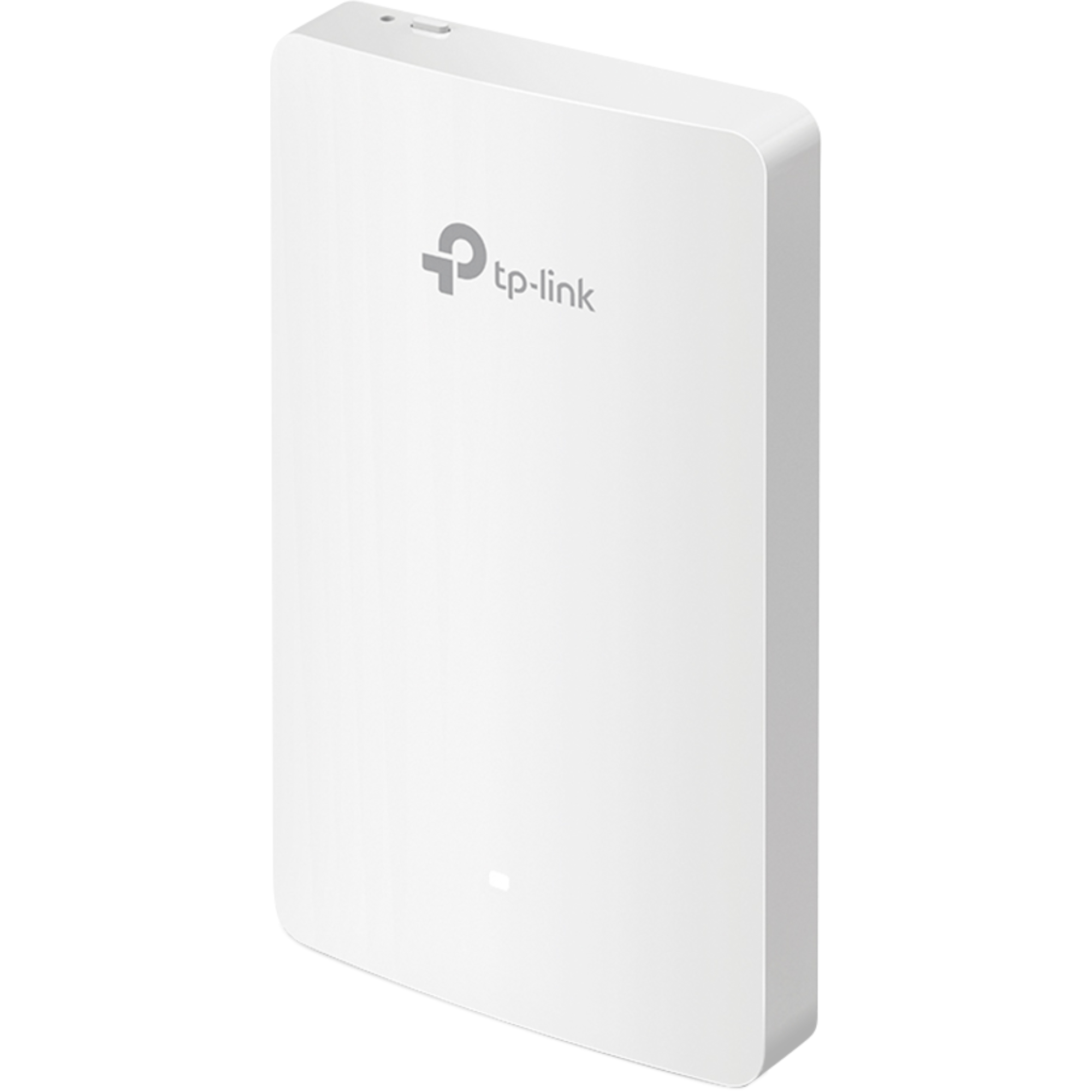

The Omada EAP235 AC1200 Wireless MU-MIMO Wall-Plate Access Point is easy to deploy on a wall. It supports passive PoE for convenient installation up to 100meters. Enterprise class WiFi security help to decrease network security threats.

Details

Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments

Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment

• Networking Interface: Uplink: 10/100/1000 Mbps Ethernet Port*1 | Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
• Buttons: Reset
• Antenna: 2 Dual-Band Antennas | 2.4GHz: 2*4dBi | 5GHz: 2*4dBi
• WiFi Standards: 802.11a/b/g/n/ac
• Signal rate: 5GHz Up to 867Mbps | 2.4GHz Up to 300Mbps
• Power Supply: 802.3af/802.3at PoE
• Maximum Power Consumption: 9.8 watts /24.4 watts (PoE Out Included)
• Maximum TX Power 2.4 GHz: 20 dBm
• Maximum TX Power 5 GHz: 23 dBm
• BSSID: 16 SSIDs, 8 for each band)
• Power Save: Supported
• Wireless Security: Captive Portal Authentication | Access Control | Wireless Mac Address Filtering | Wireless Isolation Between Clients | SSID to VLAN Mapping | Local LAN port based VLAN | Rogue AP Detection | 802.1X Support | 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
• Mounting: Wall Plate Mounting
• Operating Temperature: 0 to 40° C
• Operating Humidity: 10 to 90% Noncondensing
• Dimensions ( W x D x H ): 143 × 86 × 20mm
