Specifications

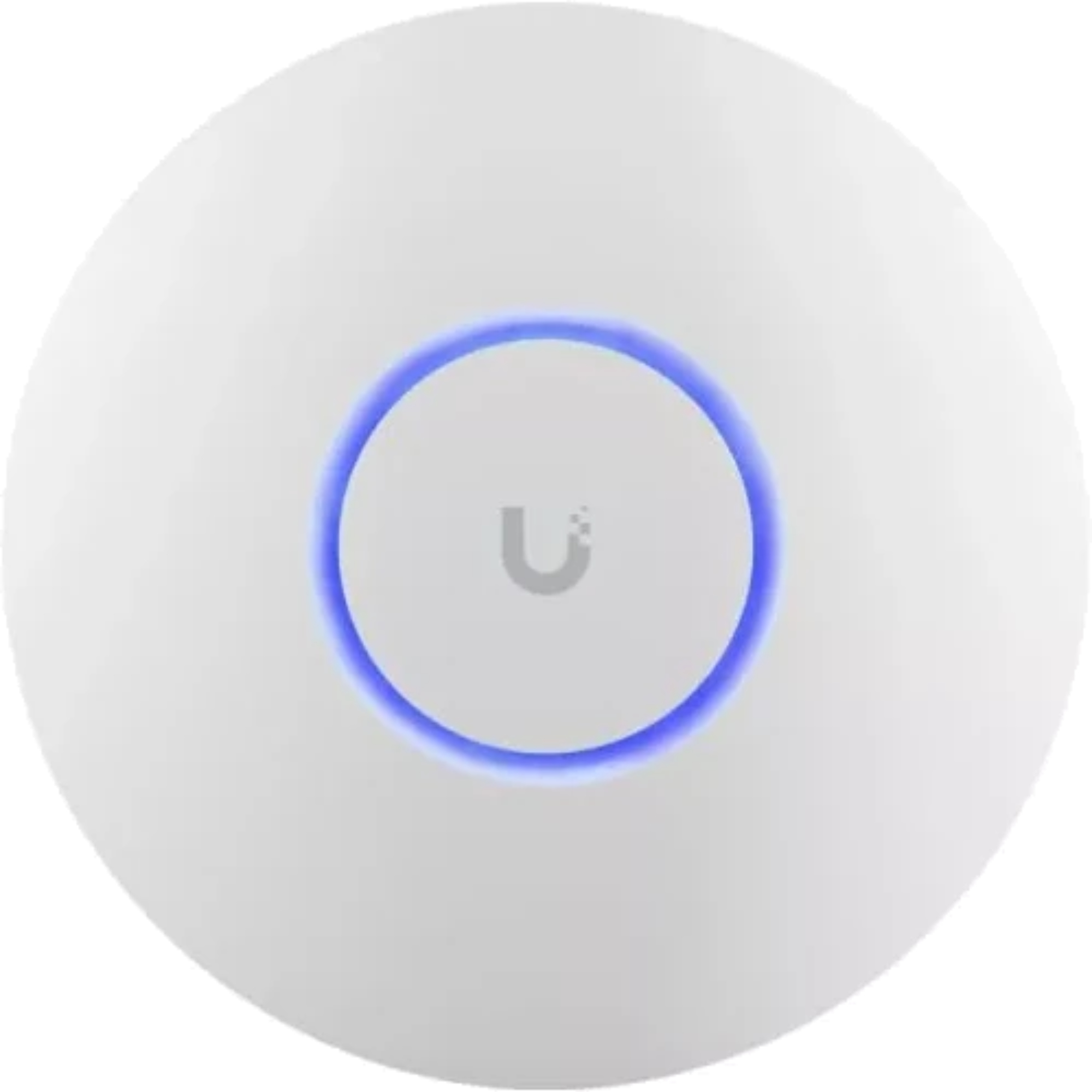

The UAP-U6+ UniFi Access Point Enterprise access point from Ubiquiti Networks is a scalable enterprise WiFi 6 access point solution designed to be easily deployed and managed. It supports the 802.11ac WiFi standard with speeds of up to 2400 Mb/s in the 5 GHz radio band, and up to 575 Mb/s in the 2.4 GHz radio band. The WiFi system offers simultaneous dual band operation with 2 x 2 MIMO technology for each band. It has a range of up to 400m and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.

The WiFi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser.

Details

• Networking Interface: (2) 10/100/1000 Ethernet Ports
• Port: (1) USB 2.0 Port
• Buttons: Factory Reset
• Antennas: (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 5.4 dBi
• WiFi Standards: 802.11a/b/g - WiFi 4/WiFi 5/WiFi 6
• Power Method: Passive Power over Ethernet (48V), 802.3af/803.2at Supported, (Supported Voltage Range: 44 to 57VDC)
• Power Supply: 48V, 0.5A PoE Gigabit Adapter
• Maximum Power Consumption: 9W
• Maximum TX Power 2.4 GHz: 23dBm
• Maximum TX Power 5 GHz: 23dBm
• BSSID: Up to Eight per Radio
• Power Save: Supported
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

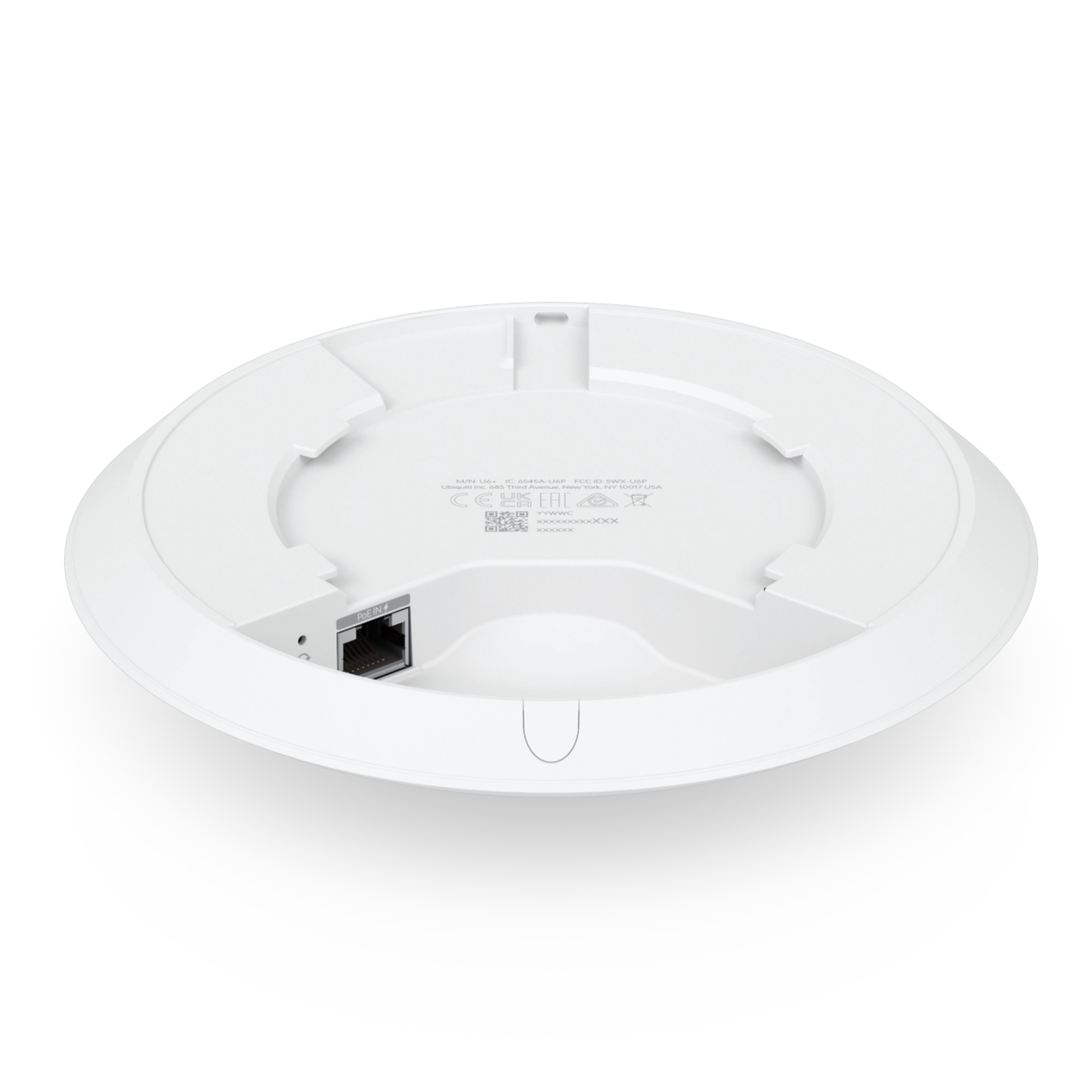

• Mounting: Wall or Ceiling (Kits Included)
• Operating Temperature: -30 to 60°C
• Operating Humidity: 5 to 95% Non-condensing
