Specifications

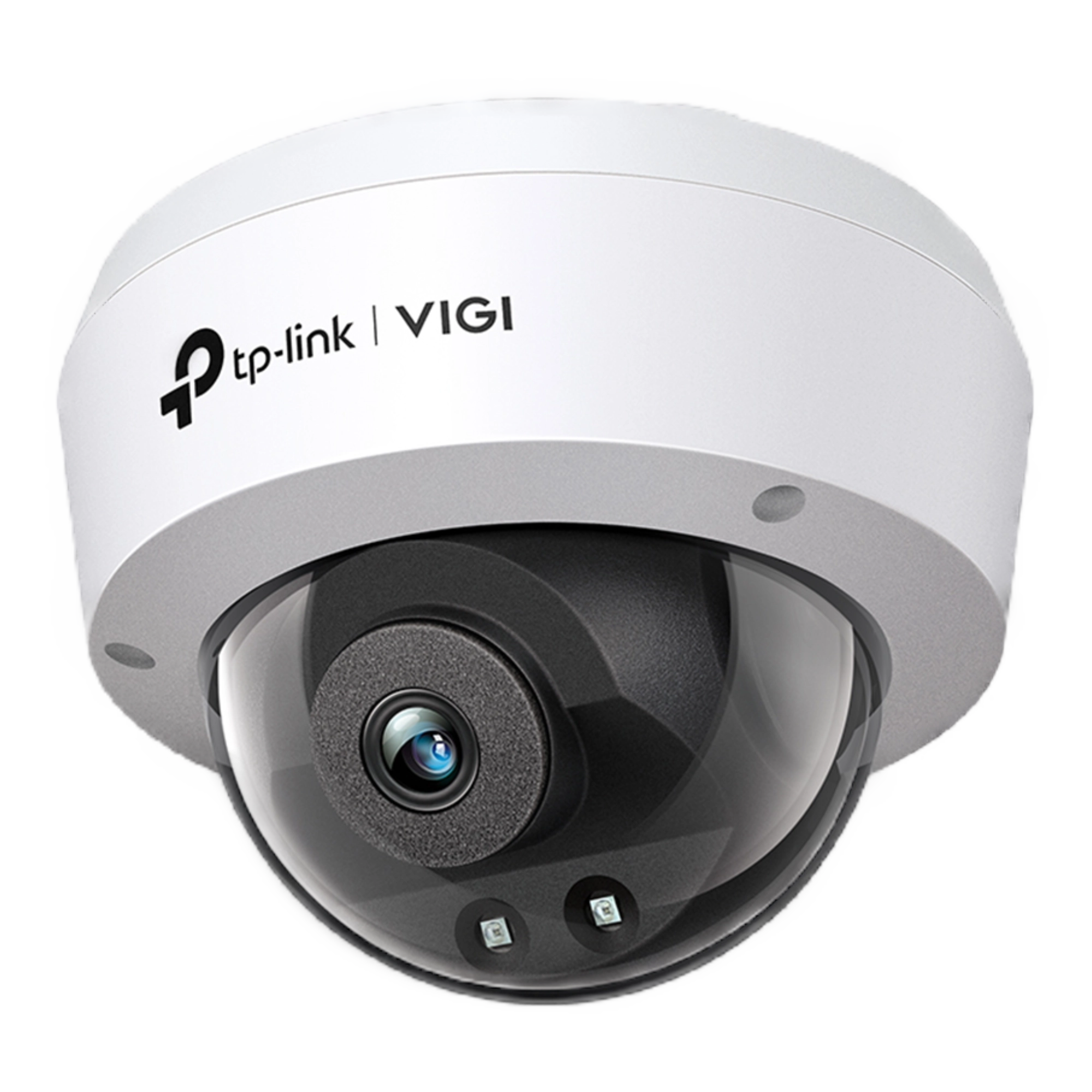

The TP-Link VIGI C240I is a 4MP IR dome camera with features like human/vehicle classification, smart detection, and advanced video enhancement (Smart IR, WDR, 3D DNR). It’s durable with an IK10 vandal-proof and IP67 waterproof rating, supports H.265+ compression, and offers flexible power options (PoE/12V DC).

• Image Sensor: 1/3” Progressive Scan CMOS
• Lens: 2.8 mm / 4 mm, Fixed Focal Length (F2.2 aperture)
• Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter with Unified/Scheduled/Auto switch
• Digital Noise Reduction: 3D DNR
• Weatherproof Rating: IP67 (weather-resistant)
• IR Working Distance: 30m
• Viewing Angle:
  • 2.8mm Lens: Horizontal 88.8°, Vertical 48.9°, Diagonal 106.5°
  • 4mm Lens: Horizontal 75.1°, Vertical 41.5°, Diagonal 88.7°
• DORI Distance:
  • 2.8 mm Lens:
    • Detect: 60m (197ft)
    • Observe: 25m (82ft)
    • Recognize: 12m (39ft)
    • Identify: 6m (20ft)
  • 4 mm Lens:
    • Detect: 80m (262ft)
    • Observe: 33m (109ft)
    • Recognize: 16m (52ft)
    • Identify: 8m (26ft)
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°
• IR LED: 2 LEDs with 30m range (850nm wavelength)
• Video Compression: H.265+/H.265/H.264+/H.264
• Video Bit Rate:
  • Main Stream: 256 Kbps to 4 Mbps
  • Sub-Stream: 64 Kbps to 512 Kbps
• Resolution: Max 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Frame Rate:
  • Main Stream: 1-30fps (depending on resolution and settings)
  • Sub-Stream: 1-30fps
