Disc 6 Pro LR

Category: Access Points

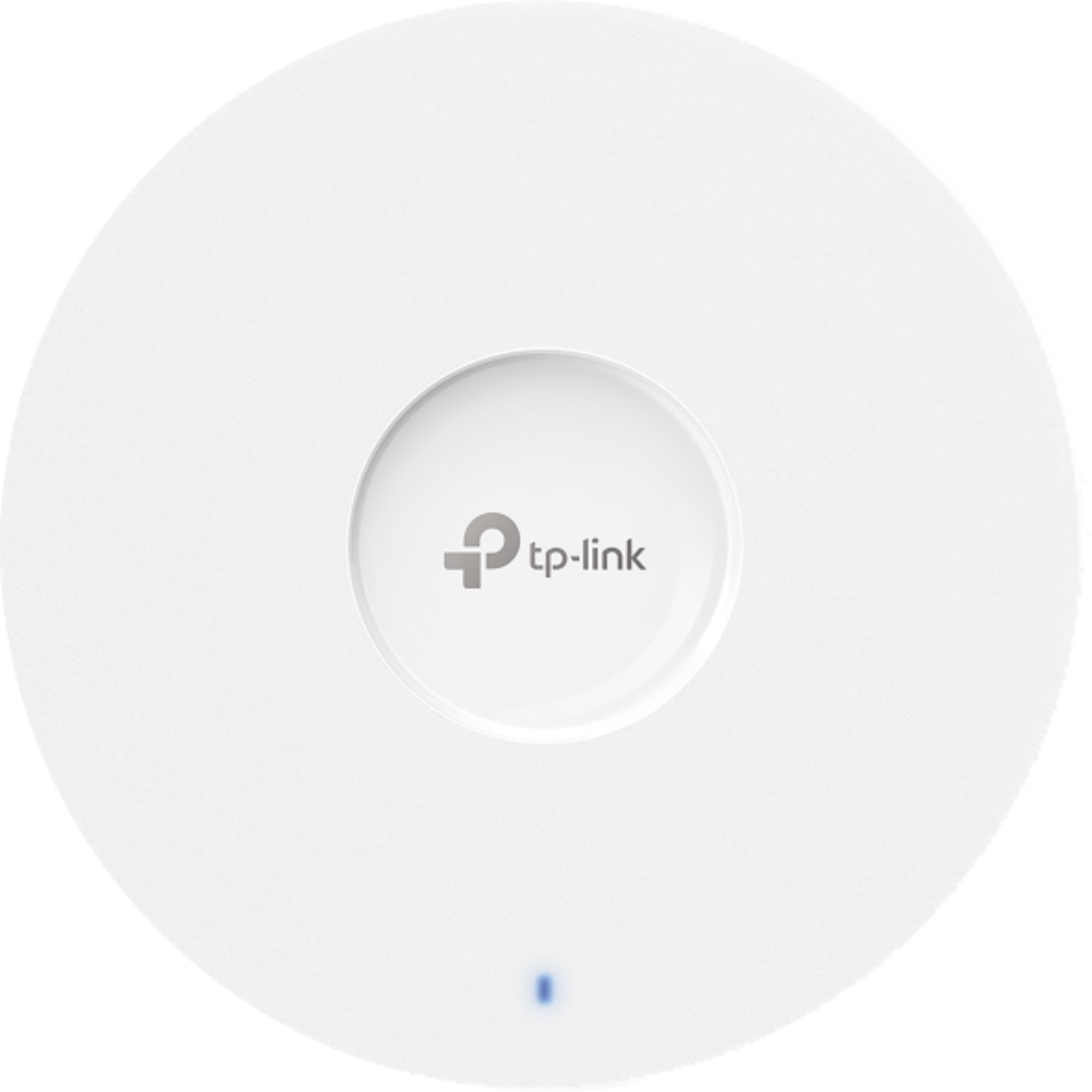

The Omada EAP683-LR for a cost-effective AX6000 Wireless MU-MIMO Gigabit Ceiling Mount Access Point with long range capabilities.

R3,699

* Prices are indicative only and subject to change. Cost is inclusive of VAT.

This product is no longer available. This page is kept available for archival purposes.

Specifications

The Omada EAP683-LR AX6000 Wireless MU-MIMO Gigabit Ceiling Mount Access Point has a ceiling mounting design with chassis make it easy to deploy on a wall or ceiling. It supports passive PoE for convenient installation up to 100meters. Enterprise class WiFi security help to decrease network security threats.

Details

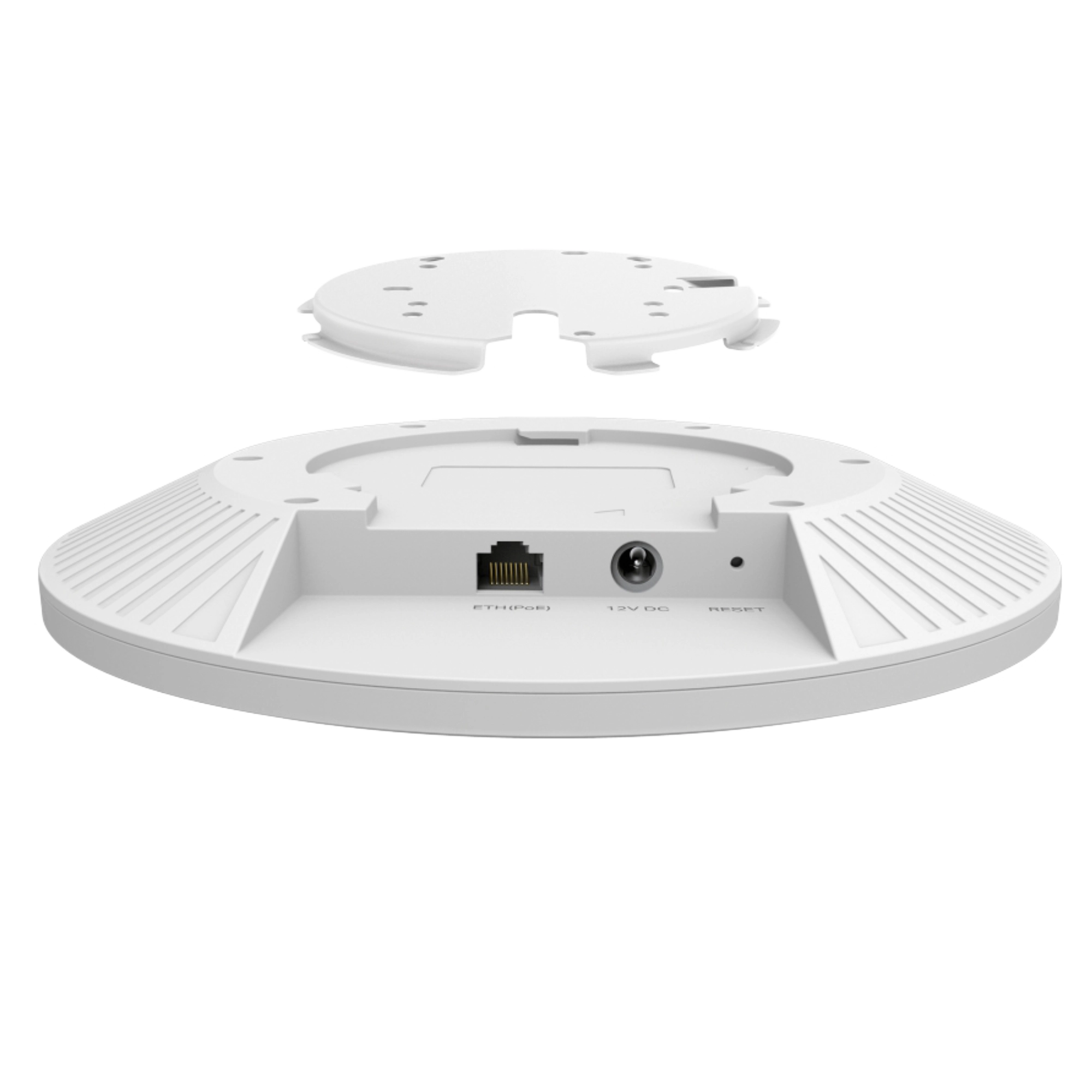

Networking Interface: 1 × 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Buttons: Reset
Antenna: Internal Omni | 2.4GHz: 4 x 4dBi | 5GHz: 4 x 5dBi
WiFi Standards: 802.11ax/ac/n/g/b/a
Power Supply: 802.3at PoE; 12 V / 2 A DC (note: power adapter not included)
Maximum Power Consumption: 20.43W
Maximum TX Power 2.4 GHz: <20 dBm
Maximum TX Power 5 GHz: <23 dBm
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Mounting: Ceiling/Wall Mounting (Kits included)

Operating Temperature: 0 to 40° C
Operating Humidity: 10 to 90% Noncondensing
Dimensions ( W x D x H ): 220 × 220 × 32.5 mm
